THERMAL CAMERA

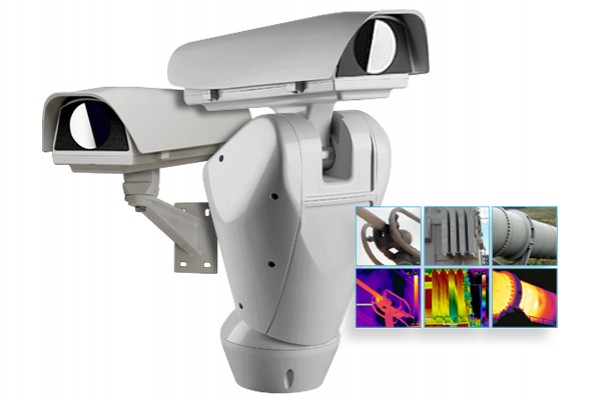

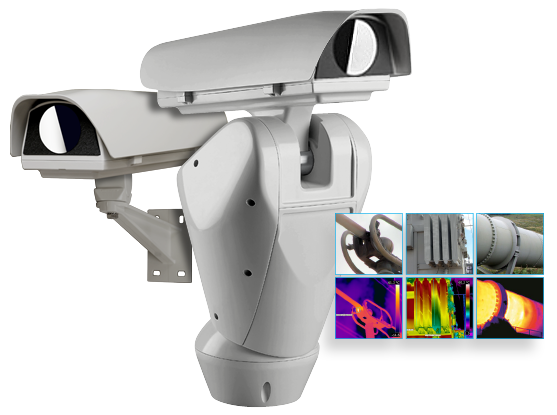

TCAM2000  SUBSTATION THERMAL CAMERA
  1. Fixed or Pan/Tilt mount
  2. Utility grade specifications
  3. Thermal analytics
  4. IP66 rated for outdoor installations
  5. Integrated infrared imaging


The risk of outages is increasing on the electric power grid due to its aging infrastructure and lack of automation systems that monitor the condition of critical equipment at substations and along the grid. Transformer fluid leaks or insulation breakdown cause overheating that is a warning of potential failures, but many utilities don’t have automated thermal detection systems that can help reveal these problems.

Continuous thermal monitoring systems are able to anticipate, detect, and respond rapidly to problems, thereby reducing the chance of failures, outages and lost productivity. Detection of temperature increases in substation equipment with thermal monitoring cameras allows preventative maintenance operations before an unplanned outage occurs due to asset failure.

The Systems With Intelligence thermal monitoring solution includes a substation hardened digital video server (DVS) that digitally records video from multiple cameras and incorporates a suite of sophisticated video and thermal analytic algorithms for detection of anomalies. The DVS includes software tools for video monitoring and analysis, features flexible networking capabilities and provides automated alarm and event notification.

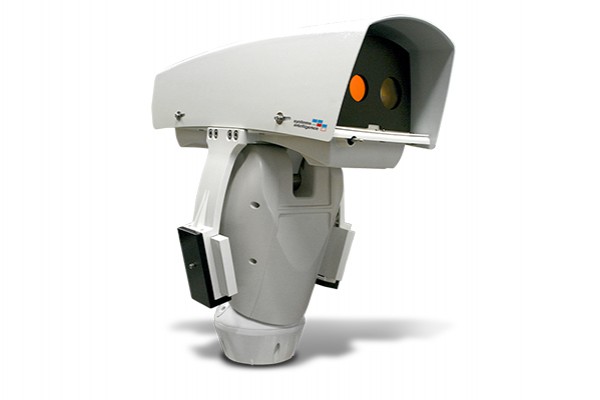

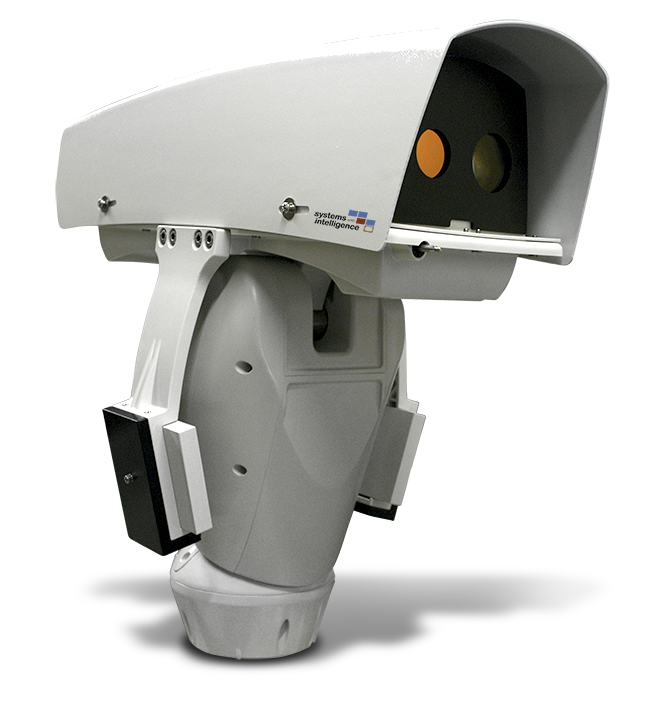

TCAM2500  DUAL VISION SUBSTATION CAMERA
  1. Dual infrared and visual camera
  2. Pan/Tilt/Zoom mount
  3. Utility grade specifications
  4. Thermal analytics
  5. IP66 rated for outdoor installations


A dual camera provides users with both a thermal a visual view of remote sites and assets. Users can program the camera to patrol around to different locations to monitor assets for temperature readings and visualization. Readings are stored in the DVS database for analysis and input into condition based maintenance programs.

Continuous thermal monitoring systems are able to anticipate, detect, and respond rapidly to problems, thereby reducing the chance of failures, outages and lost productivity. Detection of temperature increases in substation equipment with thermal monitoring cameras allows preventative maintenance operations before an unplanned outage occurs due to asset failure.

The Systems With Intelligence thermal monitoring solution includes a substation hardened digital video server (DVS) that digitally records video from multiple cameras and incorporates a suite of sophisticated video and thermal analytic algorithms for detection of anomalies. The DVS includes software tools for video monitoring and analysis, features flexible networking capabilities and provides automated alarm and event notification.
