IP CAMERA

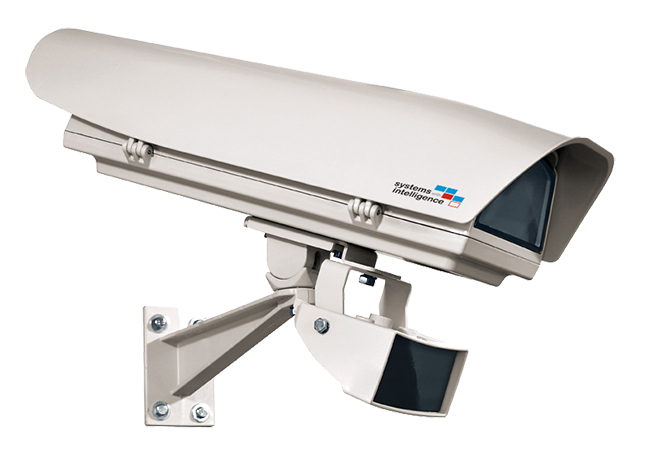

IPCAM2000S  SUBSTATION IP CAMERA
  1. Fixed mount high resolution IP camera
  2. Utility grade specifications
  3. Fiber network connectivity
  4. Day/Night operation
  5. IP66 rated for outdoor installations


The Systems With Intelligence IPCAM2000S is the industry’s first camera designed from the ground up to meet the strict requirements for electronic devices in substation environments. The IPCAM2000S is a utility grade, substation hardened camera that incorporates unique features that make it ideal for use in challenging environments. It includes features such as fiber optic network connectivity, industrial power supply, and configurable parameters to optimize the camera operation to the available bandwidth. The IPCAM2000S is used in conjunction with the Systems With Intelligence substation grade, SCADA integrated, Digital Video Server to provide utilities a highly reliable video monitoring solution for physical security and asset monitoring applications.

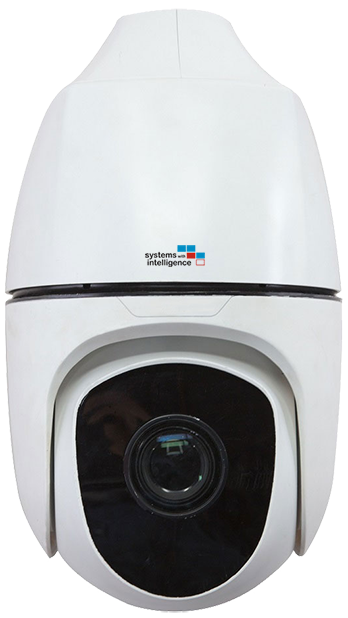

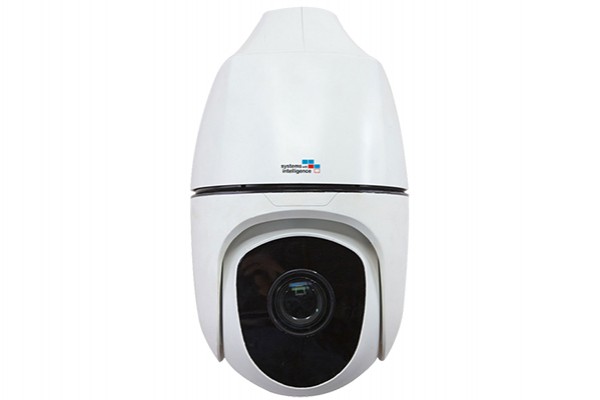

IPTZ1016 2MP 38x IR Network Pan/Tilt/Zoom Camera
  1. IEC61850-3*, IP66, IK10, Substation IEC61850-3*, IP66, IK10, Substation  rated Camera
  2. High Definition 1080p 60fps / 30fps
  3. Wide dynamic range and image stabilization
  4. Smart IR, up to250 m (820ft) IR distance
  5. Available with fiber or copper network Available with fiber or copper network port
  6. Detailed real-time substation visualization


The Systems With Intelligence IPTZ1016 Pan/ Tilt/Zoom camera provides clear, high definition images from environmentally challenging, remote locations. The IPTZ1016 can be used for safety, security and asset monitoring applications in unmanned industrial sites such as electrical power substations, wind and solar farms and oil and gas sites. With built in Pan/ Tilt/Zoom presets, the IPTZ1016 patrols the site automatically to capture events. The user can take command of the camera remotely to zoom in and capture up close details of equipment or people on site with the 38x zoom lens. The onboard long range infrared illuminators allow the IPTZ1016 to capture clear images both day and night. The environmental ratings of the IPTZ1016 make it ideal for the most reliable operation in harsh conditions.

* Note: EMC/EMI portion. Support from CJB400X Junction Box is required to meet the standard.
