iMUX 2000 T1/E1

Product Description

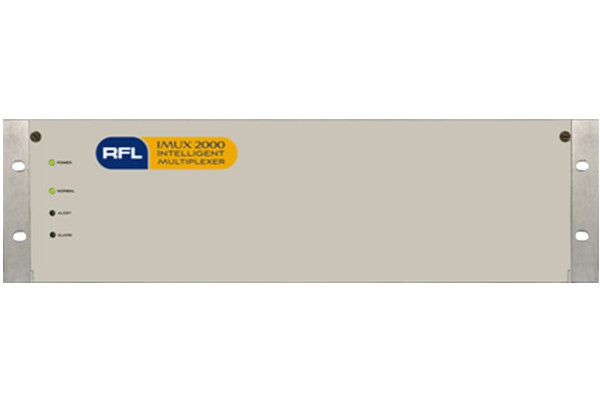

Designed for harsh environments, the IMUX 2000 T1/E1 Multiplexer creates a new class of Intelligent Multiplexer with features such as Redundant Common Logic Module, built in CSU functionality, DS0 squelching capability and Fast Reframing Channel.

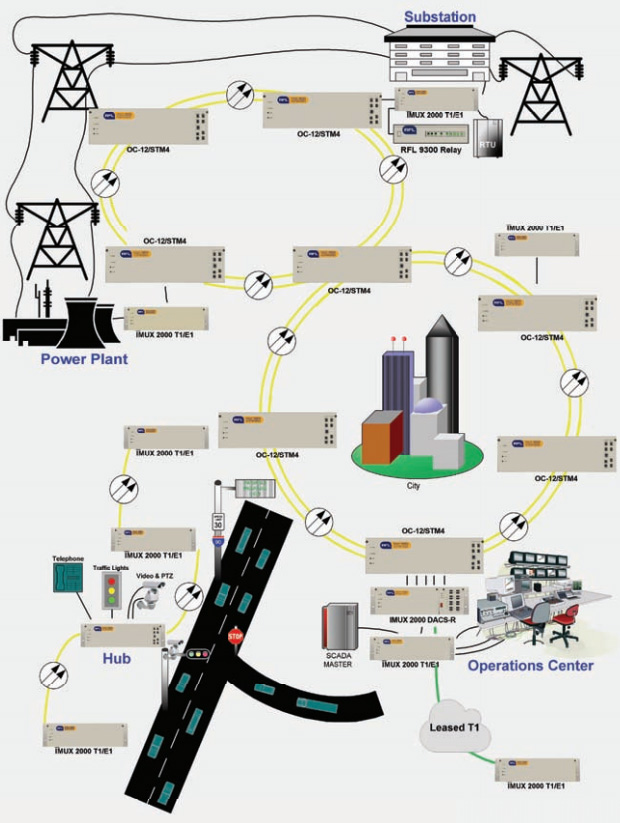

The unit provides full featured, Drop-and-Insert capability for each voice frequency circuit or any signal that can be transmitted in a DS0 channel. The multiplexer has electrical and a wide variety of optical fiber (both singlemode and multimode) interfaces to simplify system configuration. Channel cards are available for voice, data, telemetry, teleprotection, video and ethernet applications. When combined with our IMUX2000 8-Port DACS-R, the IMUX 2000 T1/E1 Multiplexer supports many types of network layouts such as Spur, Hot Standby and Ring topologies. The IMUX 2000 is both hardware and software configurable. The unit offers the ultimate network management system. It operates in a Windows™ point-and-click environment and provides network visibility from any node which allows for remote provisioning, monitoring and alarm reporting.

The IMUX 2000 T1/E1 Multiplexer is compact, modular in design and compatible with previous generations of RFL Multiplexers. For a product that meets and exceeds your telecommunication needs, advance into this class of hardened multiplexers and make the Intelligent choice, the IMUX 2000 Intelligent T1/E1 Multiplexer.
